Residential Elevators

• 500 lb Capacity
• 2:1 chain hydraulic drive system
• 36″x59″ (914 x 1,499 mm) min. floor cut-out
• Side mount cab operating panel on door lock side
• 16′ of travel standard, up to 23′ optionally

• Battery operation in up and down directions
• Two door concept (front/back access)
• Custom cab size
• Custom colors
• Automatic door operator

• Adjustable top floor presence detector built into the cab
• Electro-mechanical door lock and open door sensor
• Under-panel safety sensor
• Emergency stop and alarm
• Emergency battery lowering
• Non-skid platform surface

• Capacity: 750 lb, 950 lb, 1000 lb or 1400 lb (Zenith or Infinity HD only, code permitting)
• 2 stops with up to 10′ of travel (optional up to 6 stops over 50′ of travel)
• Fully automatic operation
• Nominal speed: 40 ft/min (Zenith, Eclipse) or 36 ft/min (Infinity)
• Illuminated automatic push button operation on hall call stations; in-use indicator lights

• Running speed up to 50 ft/min (Eclipse and Zenith only), where code permits
• Automatic Slim Doors available for 84″ or 96″ cab heights, in 29.5″ and 35.5″ clear opening configurations
• Bifold gates
• Power gate and power door operators
• Digital display hall calls
• Keypad phone or phone box

• Certified elevator door locks
• Emergency battery back-up for cab lighting and lowering
• Powered emergency lowering (Zenith); emergency manual lowering with hand crank (Eclipse) or valve (Infinity)
• Audible “beep codes” cue user if action needs to be taken for unit to operate (e.g. close landing door)

All lighting is seamlessly connected and integrated with the COP (Car Operating Panel) light control, allowing you to effortlessly dim the illumination to perfectly match your mood.

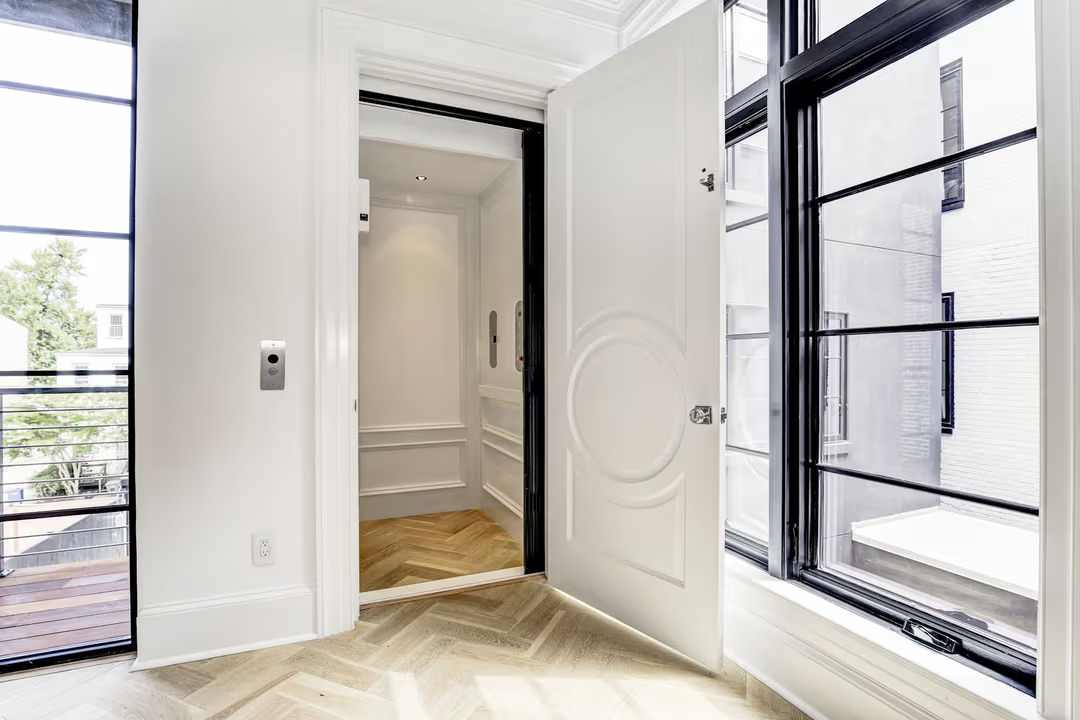

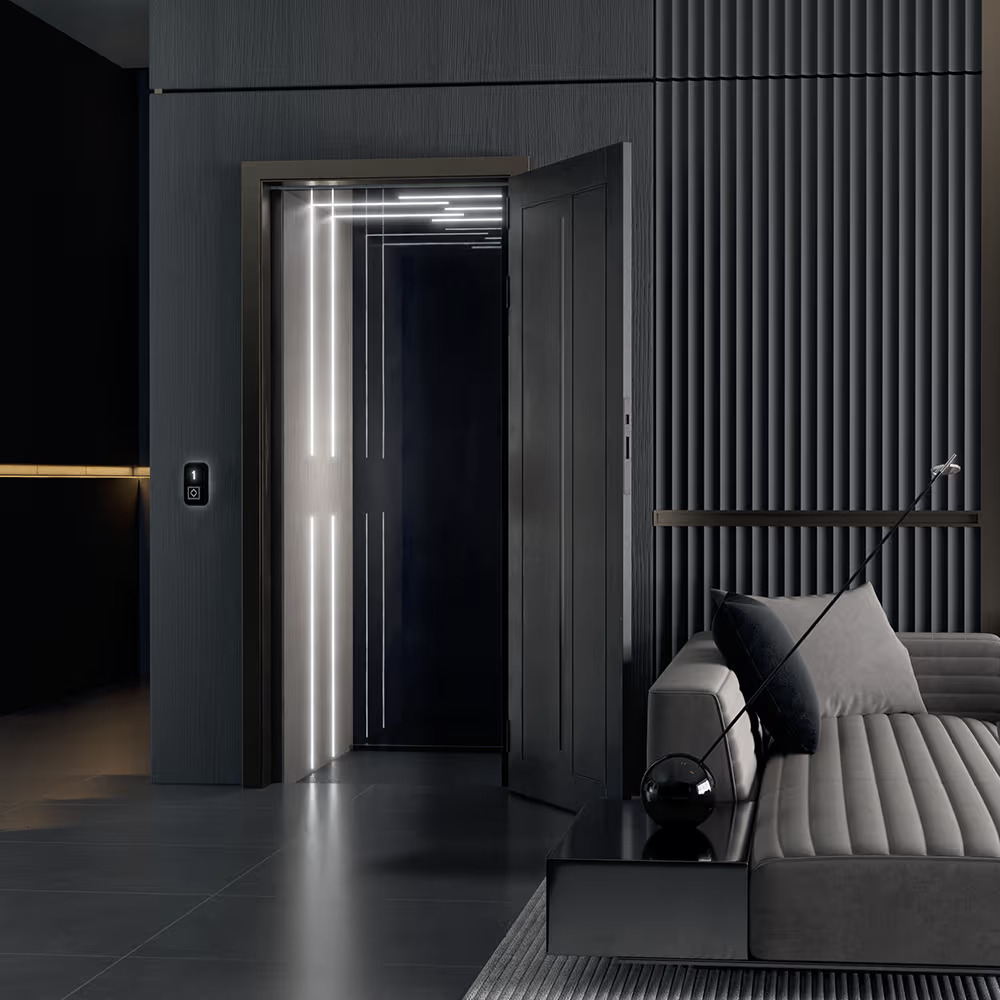

For your peace of mind, all light features of the Symmetry Asterix are created with energy-efficient and durable LED technology, and thanks to our smart software, we can tailor the lighting programming of the Symmetry Asterix to your preferences. To enhance your travel experience even more, the elevator car includes a dimmer control, allowing you to adjust the light intensity to harmonize with your mood.

Thanks to its smart and space-efficient construction, the Symmetry Asterix can be installed much faster than conventional elevators. Installing a conventional elevator generally requires expensive structural alterations that will turn your home into a building site for several weeks. But the Symmetry Asterix is different. Thanks to its compact, ready-made construction, the Symmetry Asterix minimizes the structural impact on your home, reduces your building costs 8 and helps you get your home back in order a lot faster.

For your peace of mind, your Symmetry Asterix has undergone extensive quality checks before leaving our factory. Our residential elevators are designed to be both reliable and robust and come with a market leading 3-year warranty.

• Travel: Maximum of 50’0” (minimum 12” between stops)
• Speed: 40 fpm
• Rated Capacity: 1,000 lbs
• Stops: Two
• Opening: Single

• Motor controller supply disconnects
• In-car emergency stop switch and alarm
• Safety switch for car gates/doors
• Battery backup emergency car lights and alarm
• Electro-mechanical hoistway door interlocks
• Enhanced gate/bypass monitor
• Unauthorized hoistway entry detection

A quick to install, aesthetically pleasing solution,, Standard Mounted applications allow for the PVE Machinery to be installed directly on top of the upper-floor cylinder.

The simplest solution in terms of installation,, Standard Mounted applications simply require a dedicated 220 volt, single phase power supply to be located directly above or close to the top of the unit.

Designed to accommodate installations with lower overhead clearances, Split-Unit Mounted applications allow for the PVE machinery to be remotely located from the top of the unit.

With both Indoor and Outdoor Split-Unit options,, remotely locating the machinery reduces the minimum height required on the top floor ,with the PVE machinery installed up to 30 linear feet away from the top of the upper-floor cylinder.

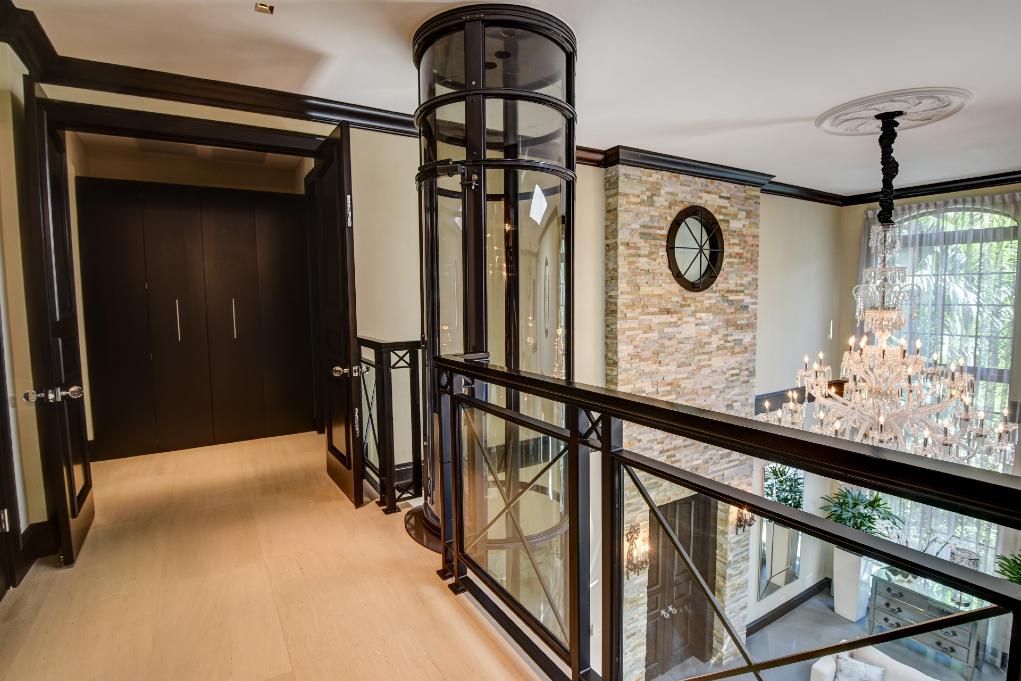

• Cylinder Design
• 2 Passenger Elevator
• 500 lb Lift Capacity
• External Diameter: 37.75ˮ
• Travel: 2 – 4 Stops
• Total Rise: 38 ft

• Cylinder Design
• 3 Passenger Elevator
• Wheelchair Accessible*
• 825 lb Lift Capacity
• External Diameter: 53.5ˮ
• Travel: 2 – 4 Stops
• Total Rise: 38 ft

• Square Design
• 2 Passenger Elevator
• 500 lb Lift Capacity
• Ext. Dimension: 36.75ˮ x 36.75ˮ
• Travel: 2 – 4 Stops
• Total Rise: 38 ft

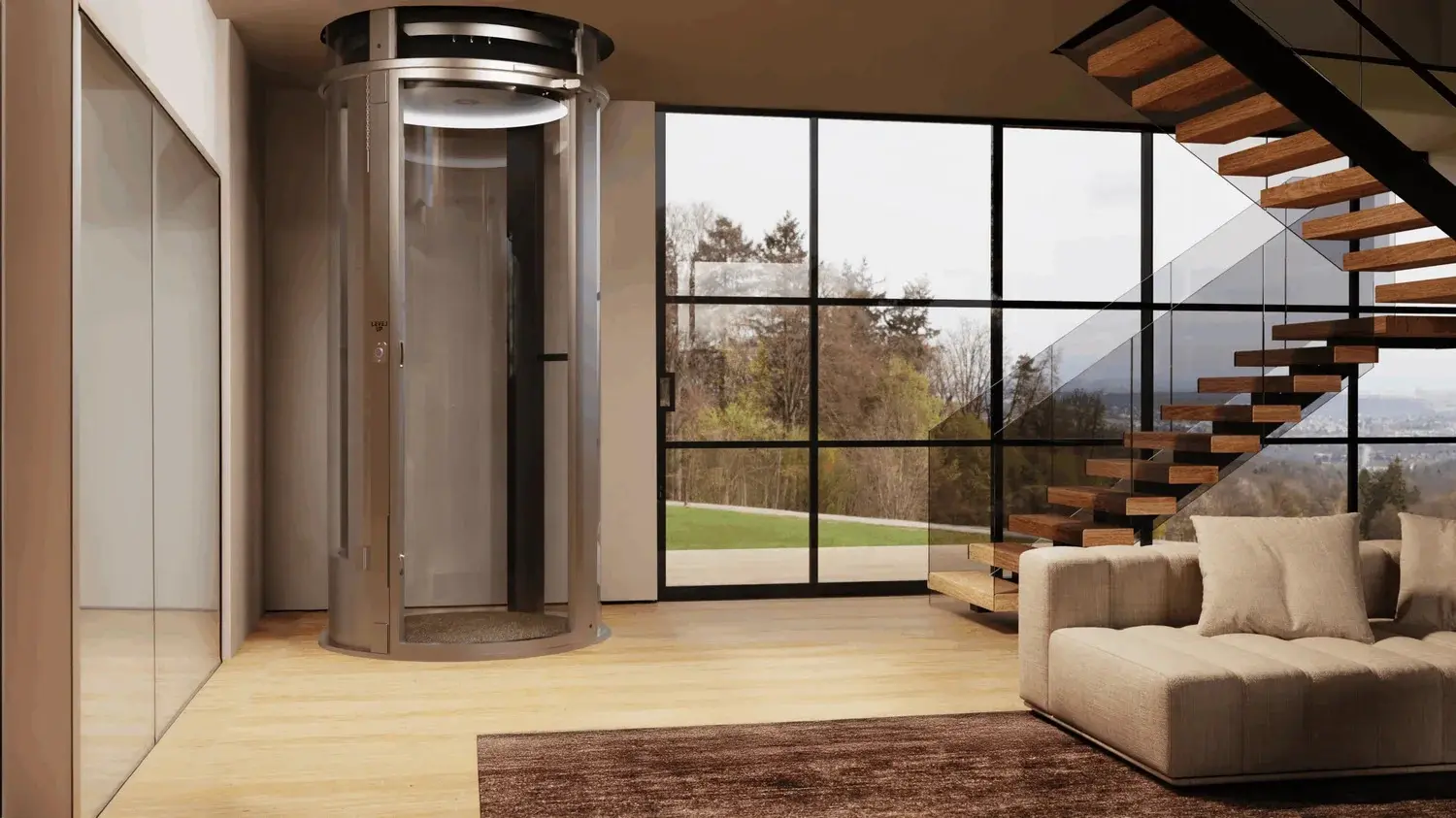

As you may or may not be aware, the State of New Jersey recently made a change to their elevator code, which resulted in the removal of the reference to a code that our vacuum technology is certified to. With over 12 years of business in the state and hundreds of installations, we were blindsided by the decision and have since been actively fighting to revert it. While our ultimate objective remains constant in our reinstatement of our vacuum elevator in New Jersey, we have since launched a new product, Level Up, that is compliant with the current elevator codes in your market. While this product is driven by a different means of conveyance (winding drum), it is manufactured by our company here in Miami, Florida.

• For one or two passengers
• Space saving design
• Travels smoothly between two floors
• Simple, intuitive operation

• For up to three passengers or one wheelchair
• Available in Compact model

• Single or Dual Door Models
• Our most spacious cab design

• For up to three passengers or one wheelchair
• Available in Compact model

• Single or Dual Door Models
• Our most spacious cab design

Capacity: 500 lb (227 kg)

Cab sizes: Type 1L or Type 1R: 30″ x 47″ (762 mm x 1194 mm)  32″ x 54″ (813 mm x 1372 mm)

Type 2: 30″ x 47″ (762 mm x 1194 mm) 32″ x 54″ (813 mm x 1372 mm)

Type 5: 30″ x 46″ (762 mm x 1168 mm)  32″ x 53″ (813 mm x 1346 mm)

Capacity: 845 lb (384 kg)

Cab sizes: Type 1L or Type 1R: N/A

Type 2: N/A

Type 5: 30″ x 46″ (762 mm x 1168 mm)  36″ x 54″ (914 mm x 1372 mm)

Power Supply: Main Line: 230V, 60 Hz, Single Phase, 30 Amp Car Light: 115V, 60 Hz, Single Phase, 15 Amp

1st Landing Height: 84 5/ 8”

2nd Landing Height: 92”

Minimum Operating Clearance: 1”
